Description

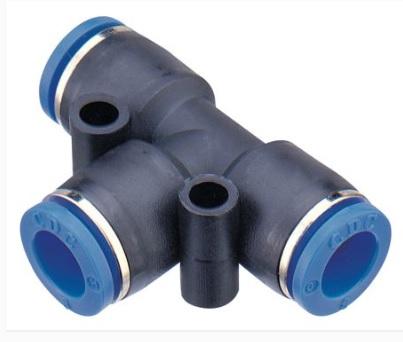

PUT ONE TOUCH PUSH IN TEE FITTING/UNION EQUAL
| PART No. | TUBE OD (MM) |
| CDPUT06N | 6 |
| CDPUT08N | 8 |
| CDPUT10N | 10 |
FEATURES
• One touch, push-to-connect configuration allows instant tubing connection
• PC type has internal / external hexagonal shapes for efficient piping in
limited spaces
• Main body of PL and PT types is a rotating structure for efficient piping
• The section has an O-ring or Teflon coating
APPLICATIONS
• One touch type pipe connection tool for air pressure piping
• Various uses depending on the user’s environment
SPECIFICATIONS
Fluid type Air (No other type of gas or liquid)
Working pressure 0 to 150 psi (10.2 bar)
Negative pressure -29.5 in Hg / -750 mm Hg (-750 Torr)
Working temperature 0°C to +60°C (+32°F to +140°F)
Application tube Polyurethane and nylon
