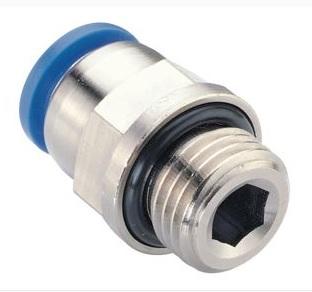

PC-G ONE TOUCH PUSH IN STRAIGHT FITTING/STUD


Price:
Sale price£1.35

Prices excluding VAT and Delivery (added at checkout)
Our website allows you to order all parts.
Please contact us if you need something urgently, otherwise please take note of the below:
Stocked items are shipped on a next day delivery via tracked courier service.
Non-stocked items are shipped 5-10 working days.
Please note due to current border and shipment delays some incoming deliveries from Europe are taking longer to arrive.
Please bear this in mind when ordering.

Description

PC-G ONE TOUCH PUSH IN STRAIGHT FITTING/STUD

PART No. TUBE OD (MM) THREAD BSPP
CDPC06G01 6 1/8
CDPC06G02 6 1/4
CDPC06G03 6 3/8
CDPC08G01 8 1/8
CDPC08G02 8 1/4
CDPC08G03 8 3/8
CDPC08G04 8 1/2
CDPC10G01 10 1/8
CDPC10G02 10 1/4
CDPC10G03 10 3/8
CDPC10G04 10 1/2



FEATURES
• One touch, push-to-connect configuration allows instant tubing connection
• PC type has internal / external hexagonal shapes for efficient piping in
limited spaces
• Main body of PL and PT types is a rotating structure for efficient piping
• The section has an O-ring or Teflon coating

APPLICATIONS
• One touch type pipe connection tool for air pressure piping
• Various uses depending on the user’s environment

SPECIFICATIONS
Fluid type Air (No other type of gas or liquid)
Working pressure 0 to 150 psi (10.2 bar)
Negative pressure -29.5 in Hg / -750 mm Hg (-750 Torr)
Working temperature 0°C to +60°C (+32°F to +140°F)
Application tube Polyurethane and nylon
