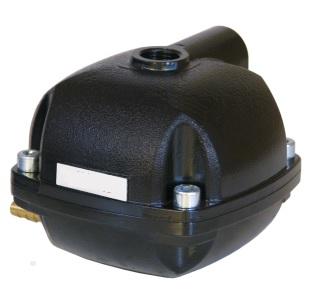

3904 JORC MAGY MAGNETICALLY OPERATED ZERO LOSS CONDENSATE WATER DRAIN

filler

Price:
Sale price£70

Prices excluding VAT and Delivery £9.95 (added at checkout) UK Mainland only!

Description

3904 JORC MAGY MAGNETICALLY OPERATED ZERO LOSS CONDENSATE WATER DRAIN

The MAGY is a magnetically operated level sensed drain that discharges condensate from all compressed air systems by using a unique technology based on magnetic forces. The MAGY uses specially selected magnets that operate the 2/2 way direct acting valve assembly.

The discharge process of the MAGY is automatic and there is no loss of compressed air during the condensate discharge cycle.

The specially selected long-life magnets ensure a high operation consistency.

The MAGY is easy to install and to service due to the top and side inlet options. The MAGY is ideally suited in applications where power is not available, too expensive or not reliable.

Typically the MAGY is installed in refrigerated dryers and under piston compressors.

SPECIFICATIONS

MAXIMUM DRAINAGE CAPACITY 200 litres condensate per hour
PRESSURE RANGE 0 - 16 bar
VALVE TYPE 2/2 way, direct acting
VALVE SEALS FPM
INLET CONNECTIONS 1/2″ (BSP or NPT, 2 inlet options)
OUTLET CONNECTION 1/8″ BSP
INLET HEIGHT 10,3 cm (top) and 9 cm (side)
MEDIUM TEMPERATURE 1 - 50 °C
AMBIENT TEMPERATURE 1 - 50 °C
SERVICEABLE VALVE Yes
HOUSING MATERIAL Corrosion resistant aluminium, EP coating
