Description

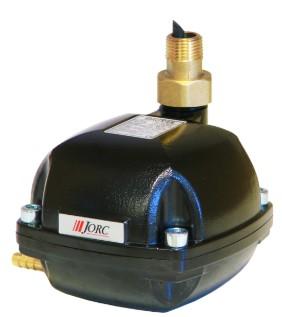

3902 JORC MAGY-UL MAGNETICALLY OPERATED ZERO LOSS CONDENSATE WATER DRAIN
The MAGY-UL uses specially selected magnets that operate the 2/2 way direct acting valve assembly.
The discharge process of the MAGY-UL is automatic and there is no loss of compressed air during the condensate discharge cycle.
The specially selected magnets ensure a high operation consistency.
The MAGY-UL is easy to install and to service and can also remain hooked up to the filter while maintenance is being carried out (i.e. the drain does not need to be unthreaded from the filter).
JORC recommends to replace all unreliable filter (float) drains and to install the MAGY-UL
| MAXIMUM FILTER CAPACITY | Unlimited |
| MAXIMUM DRAINAGE CAPACITY | 200 litres condensate per hour |
| PRESSURE RANGE | 0 - 16 bar |
| VALVE TYPE | 2/2 way, direct acting |
| VALVE SEALS | FPM |
| INLET CONNECTIONS | 1/2″ (BSP or NPT) |
| OUTLET CONNECTION | 1/8″ BSP |
| INLET HEIGHT | 10 cm (top) |
| MEDIUM TEMPERATURE | 1 - 50 °C |
| AMBIENT TEMPERATURE | 1 - 50 °C |
| SERVICEABLE VALVE | Yes |
| ENVIRONMENTAL PROTECTION | IP68 (NEMA6) |
| HOUSING MATERIAL | Corrosion resistant aluminium, EP coating |
