Description

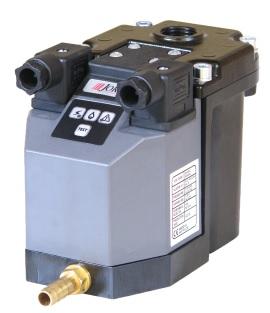

3403 JORC CAPTIV-CS ZERO LOSS CONDENSATE WATER DRAIN
The KAPTIV-CS (Compact Solution) removes all types of condensate from compressed air systems up to 100 m³/min. without the loss of compressed air.
The KAPTIV-CS is cost effective and offers a rapid pay-back period due to a competitive pricing level, low stocking cost, zero air-loss and energy saving features.
The compact robust industrial housing, 2/2 way direct acting valve with a large orifice, alarm NC or NO and the integrated mesh strainer make the KAPTIV-CS a highly reliable draining solution.
SPECIFICATIONS
| MAX. COMPRESSOR CAPACITY | 100 m³/min. |
| MAX. DRAINAGE CAPACITY A3/A4 VERSION | 665 liters condensate per hour at 16 bar |
| PRESSURE RANGE | 0 - 16 bar |
| VALVE TYPE | 2/2 way, direct acting |
| VALVE ORIFICE | 4 mm |
| VALVE SEALS | FPM |
| INLET CONNECTIONS | 1/2″ (BSP or NPT), 3 inlet options |
| INLET HEIGHT | 11 cm (top) and 7.5 & 1.5 cm (side) |
| OUTLET CONNECTION | 1/4″ BSP |
| MEDIUM TEMPERATURE | 1 - 50 °C |
| AMBIENT TEMPERATURE | 1 - 50 °C |
| SUPPLY VOLTAGE OPTIONS | 230VAC / 115VAC / 24VAC / 24VDC |
| POWER AND ALARM CONNECTORS | DIN 43650-B |
| SERVICEABLE VALVE | Yes |
| TEST FEATURE | Yes |
| ENVIRONMENTAL PROTECTION | IP65 (NEMA4) |
| INTEGRATED MESH STRAINER | Yes |
| HOUSING MATERIAL | Corrosion resistant aluminium |
